Application
It can be used in medical organizations like dental clinics, ophthalmology department, E.N.T. department,
gynecology department, surgical operation room to sterilize the surgical instrument, glassware etc.
Mainly Performance and Characteristics
Fast: 9~15 minutes working cycle, faster than normal steam sterilizer.
Safe: The short heat time for medical instrument, make the instrument safety and keep the working life longer.
Convenience: Simple operating, sterilize cassette can be used as loading and transport tools, and storage.
It is easy to operate and user friendly. Touch screen and LCD display tells the operator exactly what to do.
Microcomputer control technology, LCD screen, touch screen input Temperature, pressure, time, working status,
error alarm displays on screendisplace, heating, pressure rising, sterilizing, and exhaust, dry.
Whole cycle is controlled by computer and automatic running.
Consist of SD Card, USB port and build in printer
The machine is IT compatible- internet connection.
Build-in steam generator, steam source is not needed from outside. Digital printer can print the cycle time and various
parameters of the running cycle.
Multiple Sterilize Cycle provideour sterilizer provides 4 kinds of automatic sterilize cycle. Each cycle designed for one
specific instrument.
| Cycle Name | Specific Instrument | Sterilization Temperature | Sterilization Time |
| Unwrapped
Cycle |
Metal instrument like pliers, bur, teeth cleaning tools, tweezers etc
Micro instruments & Phaco Handpiece |
134℃ | 4min |
| Wrapped
Cycle |
Wrapped(paper/paper or paper/plastic) solid material and
metal instrument |
134℃ | 10min |
| Non-metal | Plastic | 121℃ | 20min |
| Unwrapped heavy duty cycle | Big-size unwrapped metal-instrument
|
134℃ | 8min |

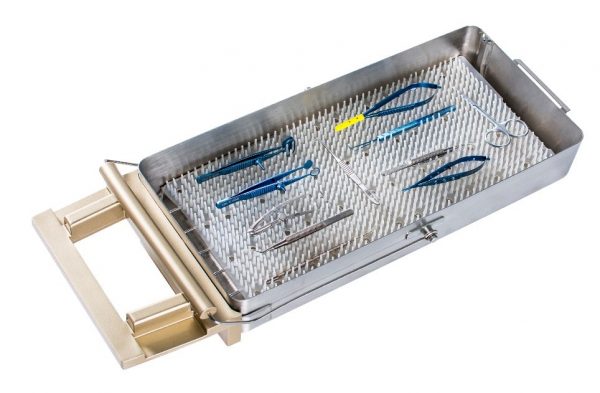

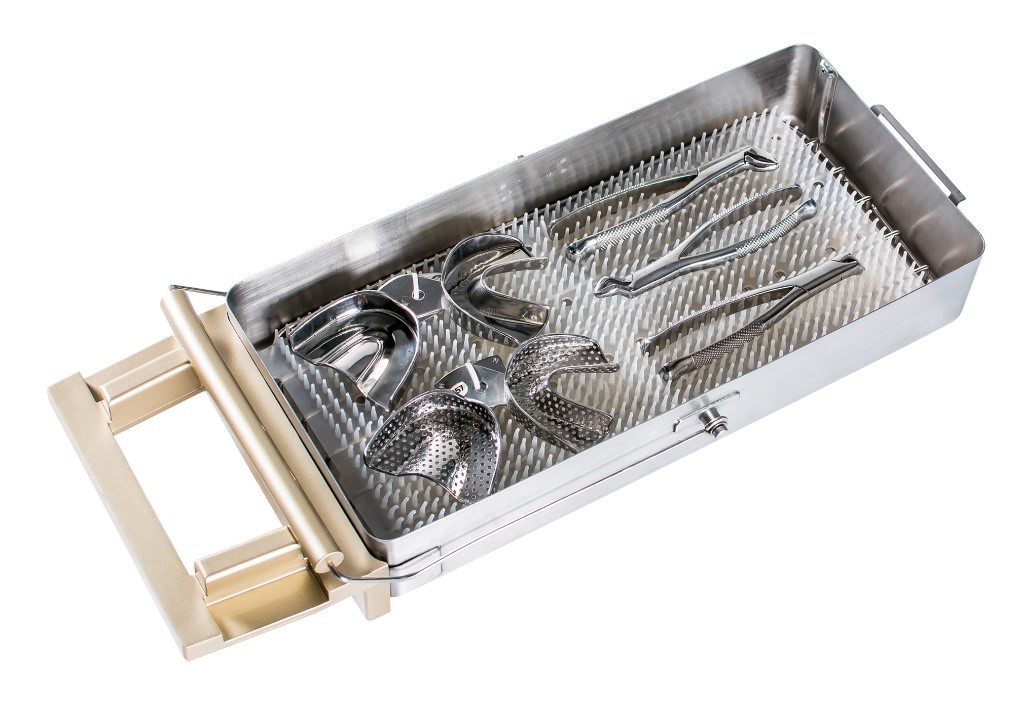

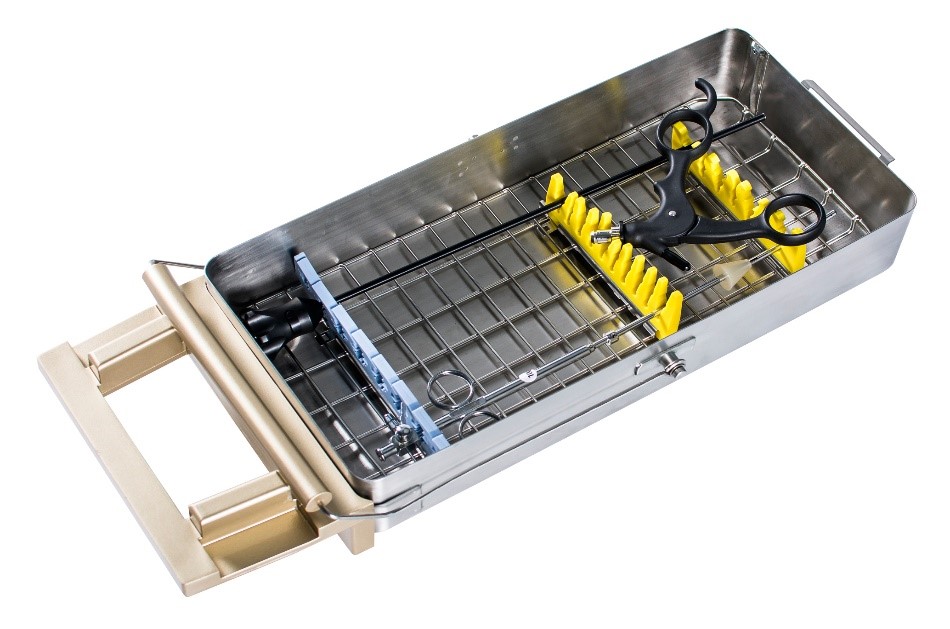

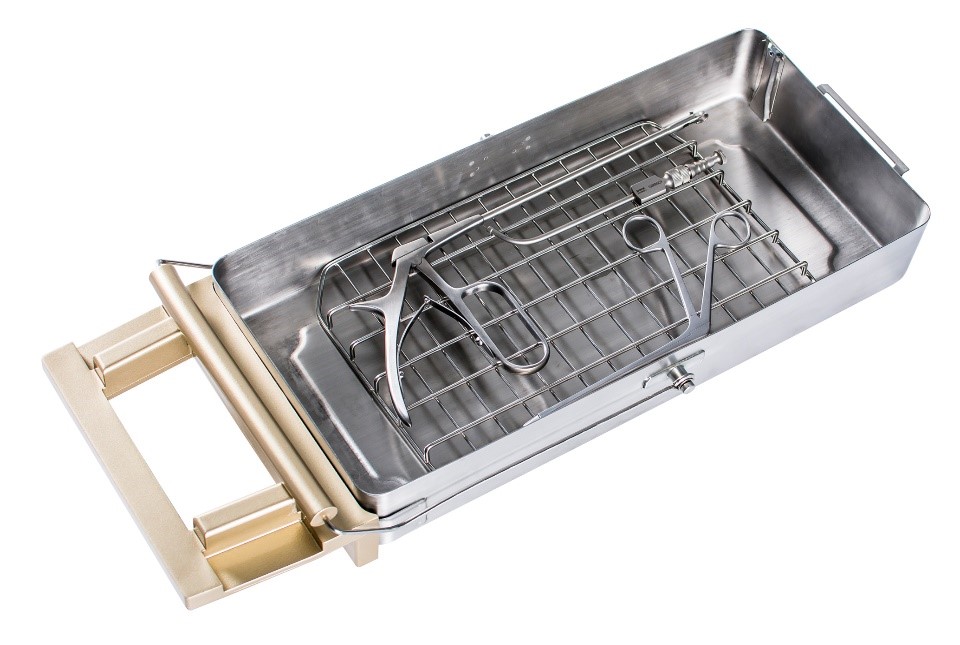

Multiple Cassette
A second cassette can be used immediately after the first one has been removed
Ridge autoclavable endoscope can be sterilized in Dmax-N- Pro 5L.
There is no damage to the ridged endoscope.
Automatic Detection
If the parameters like temperature, pressure, time haven’t achieved the setting value, or the autoclave has problem
When running, the micro-computer system will halt the cycle running and display the problem on the LCD screen.

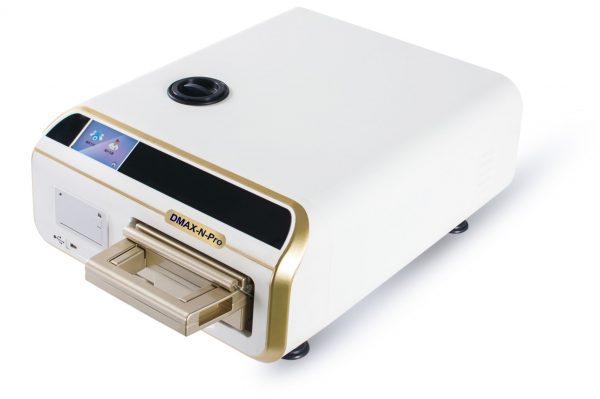

Specifications
Design pressure: 0.28Mpa
Design temperature: 150℃
Sterilization Temp range: 105-136℃
Temperature uniformity: ≤±0.5℃
Temperature display precision: 0.1℃
Chamber material: SUS304 Stainless Steel
Maximum Working Pressure: 0.24Mpa
Water Tank Capacity: 3.4L
| Specification | Unit Size | Chamber Dimension | Overall Dimension | Weight | Electrical Rating |
| Dmax-N-Pro | 2L | 280x180x38(mm) | 556x476x168(mm) | 40KG | 220/230,60Hz |
| Dmax-N-Pro | 5L | 380x180x80(mm) | 595x476x208(mm) | 45KG | 220/230,60Hz |
| Dmax-N-Pro | 5.2L | 490x180x80(mm) | 595x476x208(mm) | 45KG | 220/230,60Hz |
